Newton Pro

Technical specifications

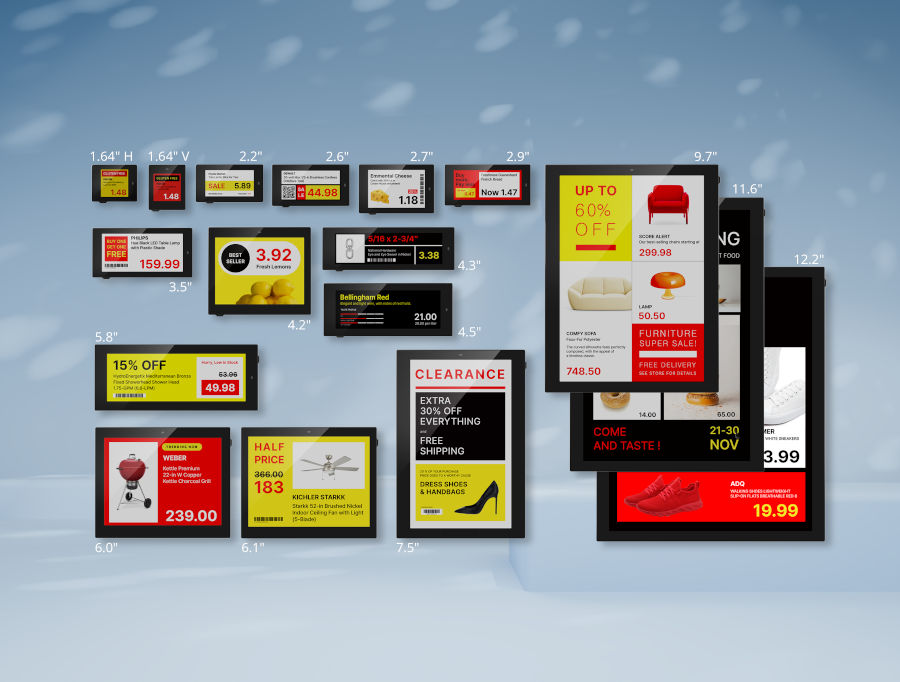

Select the label size below:

This section details specification of each ESL by size. ESLs are identified by the diagonal  measurement of the display in inches. For example, a 2.9” ESL is referring to an ESL with the  diagonal display dimension of 2.9”.

  1. 1.6" (V)
  2. 1.6" (H)
  3. 2.2"
  4. 2.6"
  5. 2.7"
  6. 2.9"
  7. 3.5"
  8. 4.2"
  9. 4.3"
  10. 5.8"
  11. 6.0"
  12. 6.1"
  13. 7.5"
  14. 9.7"
  15. 11.6"
  16. 12.2"

Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

36.7 × 44.9 × 10.45 (mm)

Text Here

Display

Active Display Area (mm): 27.0 × 27.0
Resolution: 200 x 200 pixels
Pixel density: 188 dpi

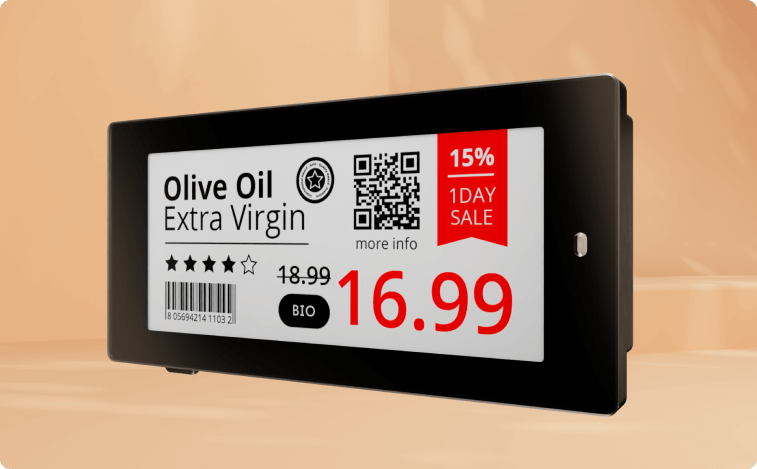

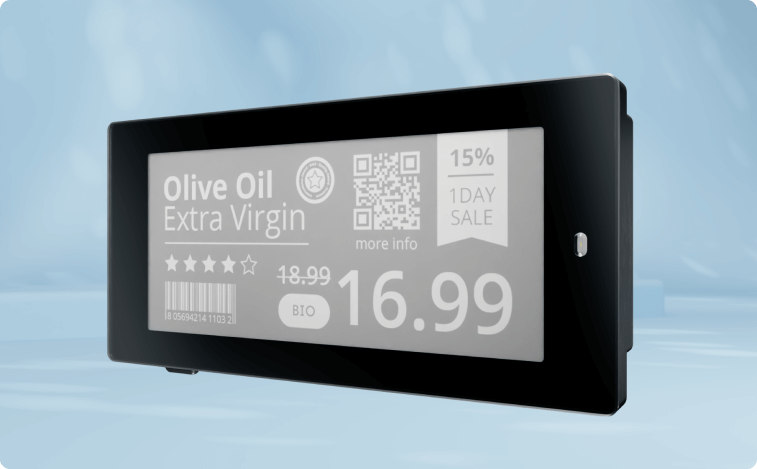

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 1
Battery lifetime: Up To 5 years (2 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

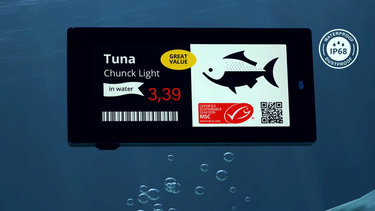

Protection from water & dust

IP68
Text Here

Button

1
Text Here

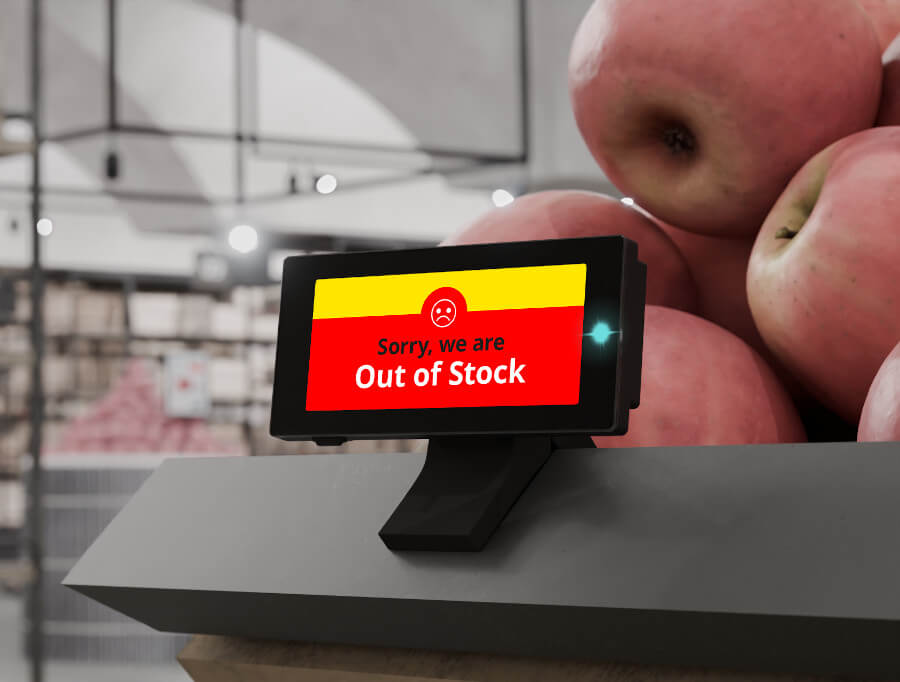

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes

Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

44.9 × 36.7 × 10.45 (mm)

Text Here

Display

Active Display Area (mm): 27.0 × 27.0
Resolution: 200 x 200 pixels
Pixel density: 188 dpi

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 1
Battery lifetime: Up To 5 years (2 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes

Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

67.0 × 37.4 × 10.45 (mm)

Text Here

Display

Active Display Area (mm): 48.1 × 26.0
Resolution: 296 x 160 pixels
Pixel density: 156dpi

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 2
Battery lifetime: Up To 10 years (2 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes

Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

79.2 × 42.5 × 10.45 (mm)

Text Here

Display

Active Display Area (mm): 60.0 × 30.7
Resolution: 360 x 184 pixels
Pixel density: 152dpi

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 2
Battery lifetime: Up To 10 years (2 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes

Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

76.0 × 49.5 × 10.5 (mm)

Text Here

Display

Active Display Area (mm): 57.3 × 38.2
Resolution: 300 x 200 pixels
Pixel density: 133 dpi

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 2
Battery lifetime: Up To 10 years (2 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes

Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

85.9 × 41.3 × 10.45 (mm)

Text Here

Display

Active Display Area (mm): 67.6 × 29.6
Resolution: 384 x 168 pixels
Pixel density: 144 dpi

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 2
Battery lifetime: Up To 10 years (2 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes

Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

100.2 × 49.6 × 10.45 (mm)

Text Here

Display

Active Display Area (mm): 81.0 × 38.0
Resolution: 384 x 180 pixels
Pixel density: 120 dpi

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 2
Battery lifetime: Up To 10 years (2 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes

Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

98.1 × 83.7 × 12.45 (mm)

Text Here

Display

Active Display Area (mm): 84.8 × 63.6
Resolution: 400 x 300 pixels
Pixel density: 120 dpi

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 2
Battery lifetime: Up To 10 years (2 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes

Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

130.2 × 42.3 × 13.0 (mm)

Text Here

Display

Active Display Area (mm): 105.4 × 30.7
Resolution: 522 x 152 pixels
Pixel density: 125 dpi

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 2
Battery lifetime: Up To 10 years (2 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes

Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

164.0 × 66.8 × 14.3 (mm)

Text Here

Display

Active Display Area (mm): 139.0 × 47.7
Resolution: 792 x 272 pixels
Pixel density: 144 dp

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 3 (battery pack)
Battery lifetime: Up To 10 years (1 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes



Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

133.0 × 109.0 × 14.3 (mm)

Text Here

Display

Active Display Area (mm): 114.9 × 85.8
Resolution: 600 x 448 pixels
Pixel density: 132 dpi

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 4 (battery pack)
Battery lifetime: Up To 10 years (1 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes



Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

133.2 × 109.96 × 14.9 (mm)

Text Here

Display

Active Display Area (mm): 118.78 × 88.22
Resolution: 648 x 480 pixels
Pixel density: 138 dpi

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 4 (battery pack)
Battery lifetime: Up To 10 years (1 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes



Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

125.0 × 182.9 × 14.85 (mm)

Text Here

Display

Active Display Area (mm): 97.9 × 163.2
Resolution: 480 x 800 pixels
Pixel density: 126 dpi

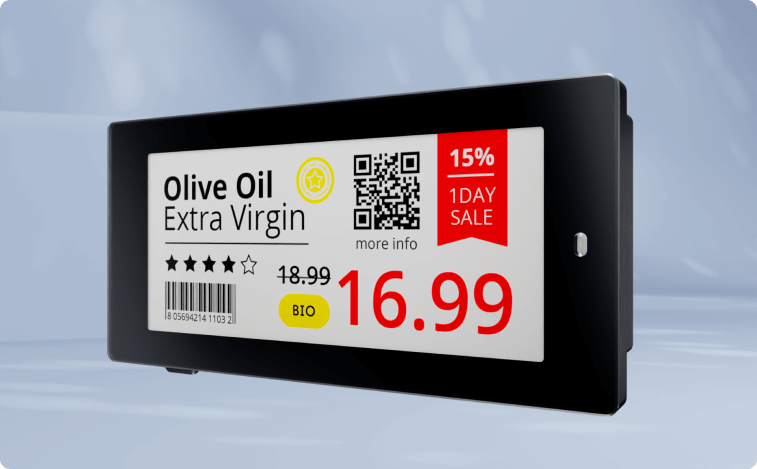

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 4 (battery pack)
Battery lifetime: Up To 10 years (1 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes



Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

170.2 × 223.6 × 14.85 (mm)

Text Here

Display

Active Display Area (mm): 141.12 × 201.6
Resolution: 672 x 960 pixels
Pixel density: 126 dpi

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 5 (battery pack)
Battery lifetime: Up To 10 years (1 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes

Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

192.0 × 269.1 × 15.35 (mm)

Text Here

Display

Active Display Area (mm): 163.0 × 244.5
Resolution: 640 x 960 pixels
Pixel density: 100 dpi

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 5 (battery pack)
Battery lifetime: Up To 10 years (1 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes

Newton Pro ESL
Newton Pro ESL

Dimensions (WxHxD)

216.2 × 260.0 × 15.35 (mm)

Text Here

Display

Active Display Area (mm):
190.1 × 237.6
Resolution: 768 x 960 pixels
Pixel density: 103 dpi

Display technology: Full Graphic E-ink Display
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Text Here

Page capacity

Up to 7 pages
Text Here

Operating temperature

0 - 40°C
32 - 104°F
Text Here

Battery

Type and number: CR2450 × 6 (battery pack)
Battery lifetime: Up To 10 years (1 Update/day)
Text Here

Encryption

128-Bit AES
Text Here

Compliance

FCC, IC, CE, TELEC, KC, RoHS
Text Here

NFC

FeliCa NFC Forum Type 3
Text Here

Protection from water & dust

IP68
Text Here

Button

1
Text Here

LED

7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)
Text Here

ESL operating frequency

2.4 Ghz
Text Here

Wireless firmware update

Yes
