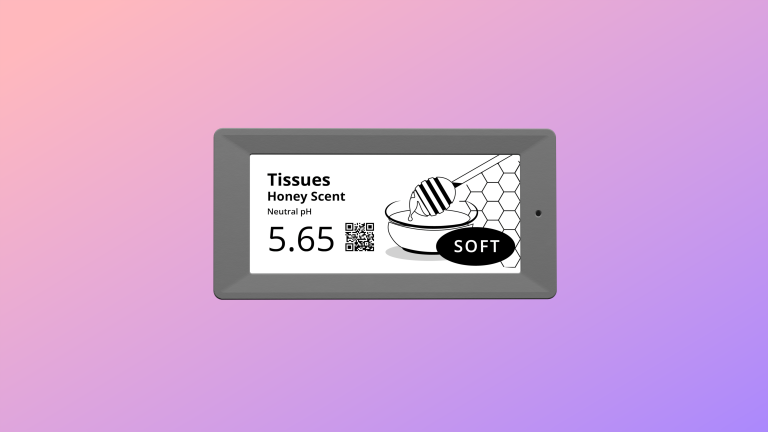

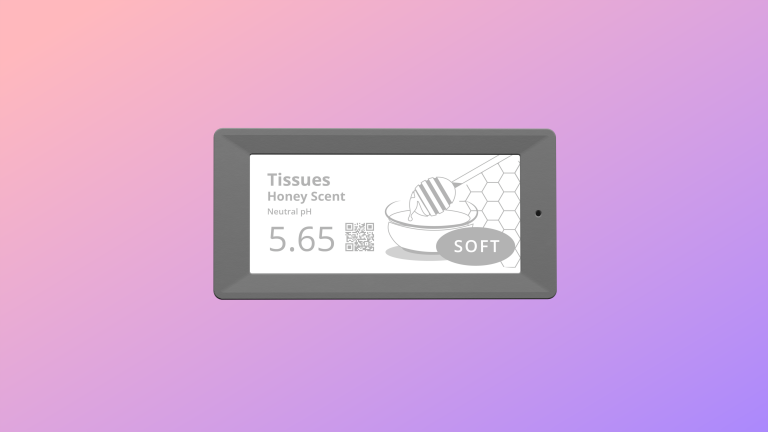

Slide the cursor to see the difference
Technical specifications
Select the label size below:

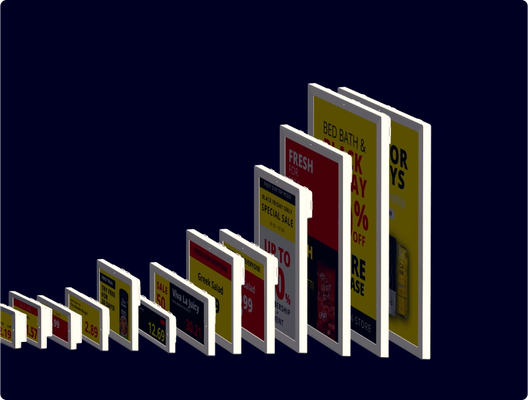

This section details specification of each ESL by size. ESLs are identified by the diagonal measurement of the display in inches. For example, a 2.9” ESL is referring to an ESL with the diagonal display dimension of 2.9”.
Model
G : EL016F5C4C/WWW
W : EL016F5W4C/WWW
B : EL016F5B4C/WWW
Dimensions (WxHxD)
36.95 × 46.63 × 11.62 (mm)
1.45 × 1.84 × 0.46 (in)
Display
Active Display Area (in): 1.06 × 1.06
Resolution: 200 x 200 pixels
Pixel density: 188 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color(optional)

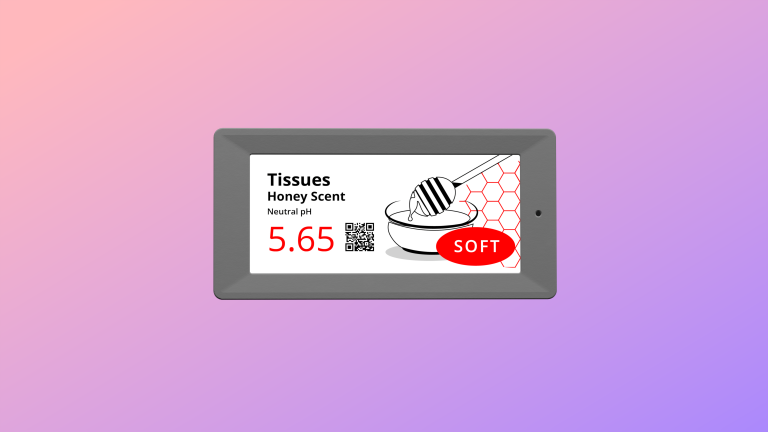

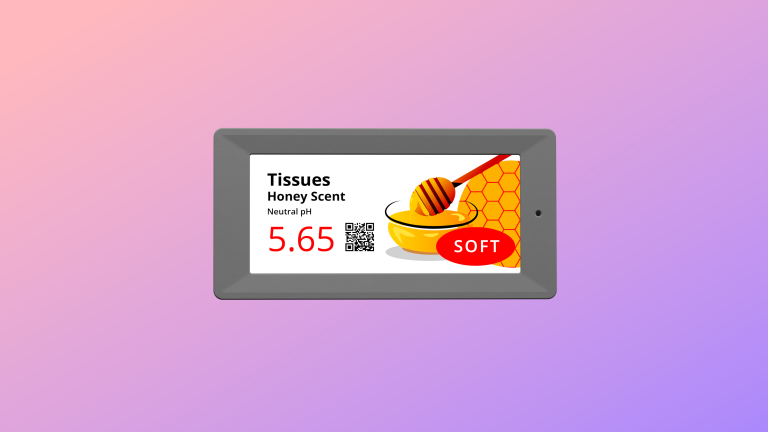

Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 5 years (2 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button

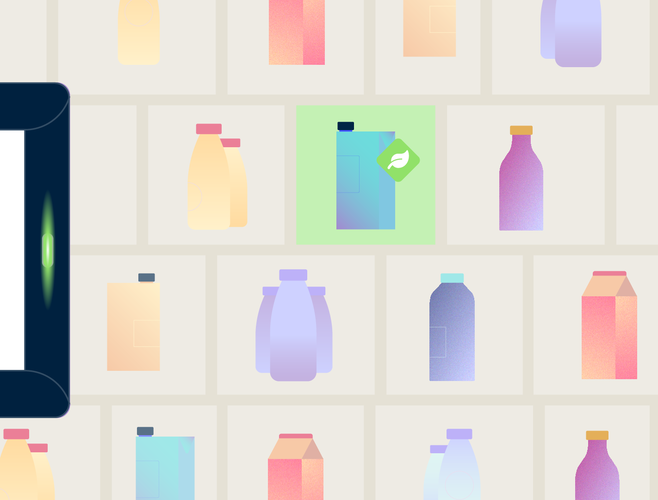

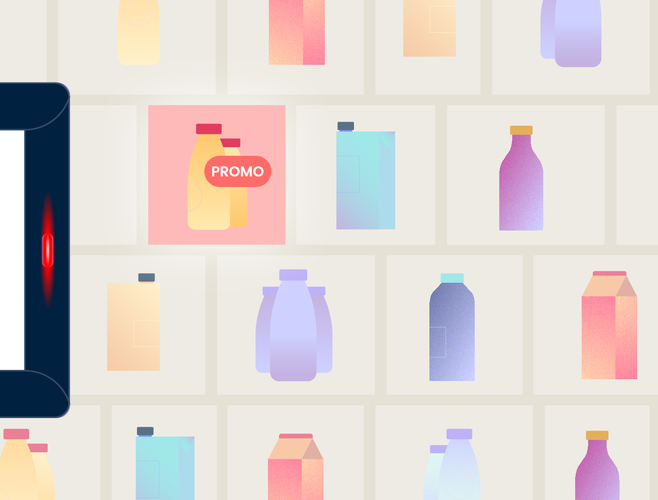

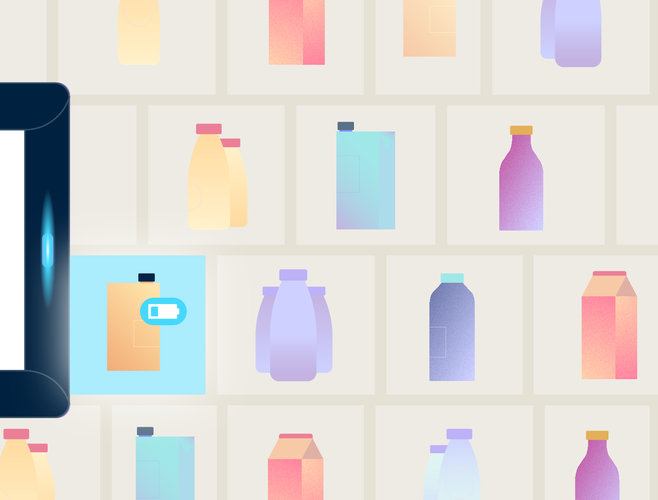

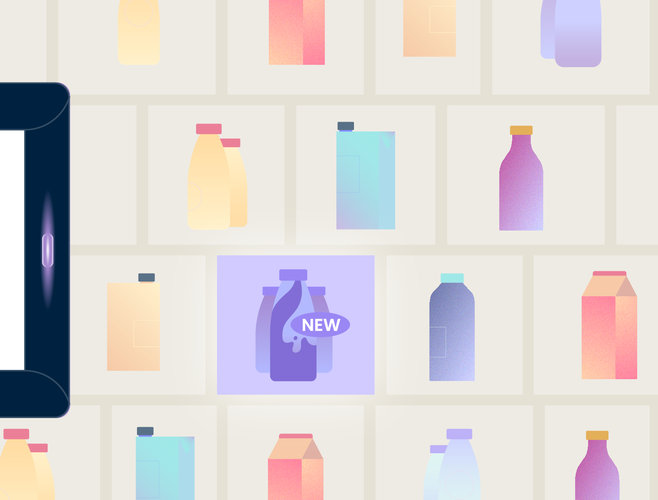

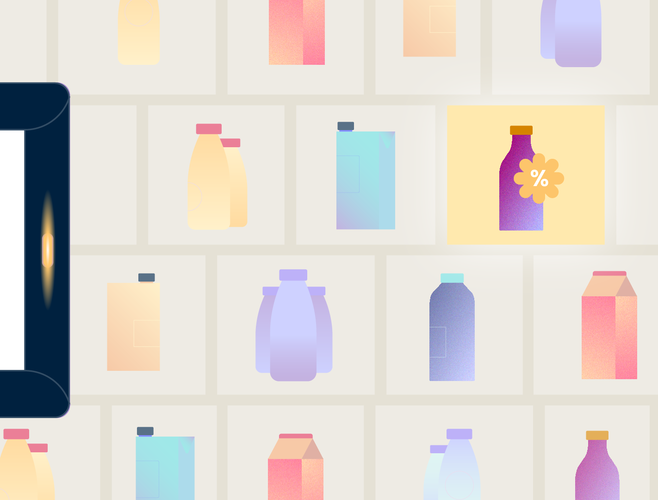

LED
ESL operating frequency
Wireless firmware update
Model
G : EL022F5C4C/WWW
W : EL022F5W4C/WWW
B : EL022F5B4C/WWW
Dimensions (WxHxD)
66.95 × 36.95 × 11.62 (mm)
2.64 × 1.45 × 0.46 (in)
Display
Active Display Area (in): 1.89 × 1.02
Resolution: 296 x 160 pixels
Pixel density: 156 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color (optional)
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 10 years (2 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button
LED
ESL operating frequency
Wireless firmware update
Model
G : EL016F5C4C/WWW
W : EL016F5W4C/WWW
B : EL016F5B4C/WWW
Dimensions (WxHxD)
78.12 × 42.79 × 11.62 (mm)
3.08 × 1.68 × 0.46 (in)
Display
Active Display Area (in): 2.37 × 1.21
Resolution: 360 x 184 pixels
Pixel density: 152 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color (optional)
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 10 years (2 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button
LED
ESL operating frequency
Wireless firmware update
Model
G : EL027F5C4C/WWW
W : EL027F5W4C/WWW
B : EL027F5B4C/WWW
Dimensions (WxHxD)
75.64 × 49.51 × 11.62 (mm)
2.97 × 1.94 × 0.46 (in)
Display
Active Display Area (in): 2.25 × 1.5
Resolution: 300 x 200 pixels
Pixel density: 133 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color (optional)
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 10 years (2 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button
LED
ESL operating frequency
Wireless firmware update
Model
G : EL029F5C4C/WWW
W : EL029F5W4C/WWW
B : EL029F5B4C/WWW
Dimensions (WxHxD)
85.67 × 42.79 × 11.62 (mm)
3.37 × 1.68 × 0.46 (in)
Display
Active Display Area (in): 2.66 × 1.17
Resolution: 384 x 168 pixels
Pixel density: 144 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color (optional)
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 10 years (2 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button
LED
ESL operating frequency
Wireless firmware update
Model
G : EL035F5C4C/WWW
W : EL035F5W4C/WWW
B : EL035F5B4C/WWW
Dimensions (WxHxD)
99.73 × 49.35 × 12.8 (mm)
3.93 × 1.94 × 0.5 (in)
Display
Active Display Area (in): 3.19 × 1.49
Resolution: 384 x 180 pixels
Pixel density: 120 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color (optional)
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 10 years (2 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button
LED
ESL operating frequency
Wireless firmware update
Model
G : EL042F5C4C/WWW
W : EL042F5W4C/WWW
B : EL042F5B4C/WWW
Dimensions (WxHxD)
97.13 × 82.18 × 13.55 (mm)
3.82 × 3.24 × 0.53 (in)
Display
Active Display Area (in):3.34 × 2.5
Resolution: 400 x 300 pixels
Pixel density: 120 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color (optional)
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 10 years (2 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button
LED
ESL operating frequency
Wireless firmware update
Model
G : EL043F5C4C/WWW
W : EL043F5W4C/WWW
B : EL043F5B4C/WWW
Dimensions (WxHxD)
128.73 × 41.9 × 12.8 (mm)
5.07 × 1.65 × 0.5 (in)
Display
Active Display Area (in):4.15 × 1.21
Resolution: 522 x 152 pixels
Pixel density: 125 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color (optional)
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 10 years (2 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button
LED
ESL operating frequency
Wireless firmware update
Model
G : EL058F5C4C/WWW
W : EL058F5W4C/WWW
B : EL058F5B4C/WWW
Dimensions (WxHxD)
166.16 × 65.67 × 13.26 (mm)
6.54 × 2.59 × 0.52 (in)
Display
Active Display Area (in):5.47 × 1.88
Resolution: 792 x 272 pixels
Pixel density: 144 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color (optional)
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 10 years (1 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button
LED
ESL operating frequency
Wireless firmware update
Model
G : EL060F5C4C/WWW
W : EL060F5W4C/WWW
B : EL060F5B4C/WWW
Dimensions (WxHxD)
133.2 × 109.96 × 14.85 (mm)
5.24 × 4.33 × 0.59 (in)
Display
Active Display Area (in):4.52 × 3.38
Resolution: 600 x 448 pixels
Pixel density: 132 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color (optional)
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 10 years (1 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button
LED
ESL operating frequency
Wireless firmware update
Model
G : EL061F5C4C/WWW
W : EL061F5W4C/WWW
B : EL061F5B4C/WWW
Dimensions (WxHxD)
133.2 × 109.96 × 14.9 (mm)
5.24 × 4.33 × 0.59 (in)
Display
Active Display Area (in): 4.68 × 3.47
Resolution: 648 x 480 pixels
Pixel density: 138 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color (optional)
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 10 years (1 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button
LED
ESL operating frequency
Wireless firmware update
Model
G : EL075F5C4C/WWW
W : EL075F5W4C/WWW
B : EL075F5B4C/WWW
Dimensions (WxHxD)
124.1 × 185.5 × 14.85 (mm)
4.89 × 7.3 × 0.58 (in)
Display
Active Display Area (in): 3.85 × 6.43
Resolution: 480 x 800 pixels
Pixel density: 126 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color (optional)
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 10 years (1 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button
LED
ESL operating frequency
Wireless firmware update
Model
G : EL097F5C4C/WWW
W : EL097F5W4C/WWW
B : EL097F5B4C/WWW
Dimensions (WxHxD)
168.05 × 224.07 × 14.81 (mm)
6.62 × 8.82 × 0.58 (in)
Display
Active Display Area (in): 5.56 × 7.94
Resolution: 672 x 960 pixels
Pixel density: 121 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color (optional)
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 10 years (1 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button
LED
ESL operating frequency
Wireless firmware update
Model
G : EL116F5C4C/WWW
W : EL116F5W4C/WWW
B : EL116F5B4C/WWW
Dimensions (WxHxD)
192.31 × 267.7 × 14.85 (mm)
7.49 × 10.54 × 0.58 (in)
Display
Active Display Area (in): 6.42 × 9.63
Resolution: 640 x 960 pixels
Pixel density: 100 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color (optional)
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 10 years (1 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button
LED
ESL operating frequency
Wireless firmware update
Model
G : EL122F5C4C/WWW
W : EL122F5W4C/WWW
B : EL122F5B4C/WWW
Dimensions (WxHxD)
215.95 × 259.82 × 14.85 (mm)
8.5 × 10.23 × 0.58 (in)
Display
Active Display Area (in): 7.48 × 9.35
Resolution: 768 x 960 pixels
Pixel density: 102 dpi
Display technology: Full Graphic E-ink Display
Bezel color: Gray / white / black, customizable color (optional)
Pixel colors: BWRY (Black, White, Red, Yellow)
Viewing angle: Nearly 180˚
Page capacity
Operating temperature
Battery
Battery lifetime: Up To 10 years (1 Update/day)
Encryption
Compliance
NFC
Protection from water & dust
Button
LED
ESL operating frequency
Wireless firmware update
