Rugged Mobile Computer
When it comes to those environments requiring a big volume of data collection and entry, such as retailing, light warehousing and field mobility, CipherLab RK25 mobile computer effortlessly combines the benefits of touch computers with handheld mobility into one reliable device.
Industry Use:
- Retail
- Light Warehousing
- Transportation and Logistics
- Field Mobility
CipherLab RK25 is equipped with numeric keypads to fulfill diverse user behaviors, especially for those who are used to non-visual data entry operation, working in rugged outdoor conditions, and need custom configured buttons. Evolving from smartphones, its 4” display with multi-touch panel also ensures readability to further accomplish its friendly operation design. Built for data intensive environments, the RK25 is crafted with up-to-date features of the latest quad-core 1.4 GHz processor and IEEE 802.11 a/b/g/n/ac dual band communication to allow users to simplify complicated job processes. On top of that, the RK25’s industrial ruggedness and comprehensive offering in accessories and software empower users to thrive in their daily tasks.
The RK25 UHF RFID reader is specially made to upgrade the RFID function of RK25. User can just simply attach the RK25 device to the RK25 UHF RFID reader whenever RFID is needed. It can capture RFID tags at the distance of over 8 m and delivers a read rate at 700+ tags/sec, providing best-in-class RFID reading performance. Users can also enjoy the fast and easy application deployment by utilizing CipherLab EZConfig and EZEdit.
| Item | RK25 |
|---|---|
| OS | Android 7.0 with GMS (Upgradeable to Android 9.0 with GMS) / Android 9.0 with GMS |
| CPU | Quad-core 1.4 GHz Cortex A53 |
| Memory | 2GB RAM / 16GB Flash |
| Expansion | Micro SD card slot with SDHC support (up to 32GB) |
| SIM / SAM | 1 SIM slot and 1 optional SIM/SAM slot |
| Operating power | Replaceable and rechargeable 3.8V, 4000 mAh Li-Polymer battery |
| Working hours | Minimum 8 hours (2D imager) |
| Wireless communication | WWAN*: GSM: Quad Band (850/900/1800/1900Mhz) TD-SCDMA: Band34, Band39 WCDMA: Band1, Band2, Band5, Band8, TDD-LTE: Band38, Band39, Band40, Band41 FDD-LTE: Band1,Band2, Band3, Band5, Band7, Band8, Band20 WLAN: IEEE 802.11 a/b/g/n/ac/e/d/h/i/r/k/v/w dual band WPAN: BluetoothR Class II, V4.0 BLE, V2.1 with Enhanced Data Rate (EDR) GPS: GPS, Galileo, GLONASS, BeiDou, AGPS |
| RFID (optional) | HF RFID 13.56 MHz frequency which supports ISO14443 TYPE A,B, and ISO15693 Support NFC (Peer-to-Peer, Card Reader, Card Emulation) |
| Camera (Optional) | Autofocus 8 megapixels with LED flash |
| Display | 4'' WVGA 480 (W) x 800 (H), Corning Gorilla Glass, TN LCD |
| Size | 168 x 73.8 x 26 mm |
| Weight | 292 g (2D imager with battery) |
| Impact resistance | Standard: 1.5 m (5 ft.) multiple drops onto concrete With rubber boot: 1.8 m (6 ft.) MIL-STD-810G IP65 / 300 tumbles at 0.5 m |
| Item | RK25 UHF RFID Reader |
|---|---|
| Pairing | Electrical 8-pin connection |
| RFID Standard | EPC Class1 Gen2 V2 |
| Antenna | Circularly polarized |
| RFID performance | Fastest read rate: 700+ tag/sec Read range : 8+ m (26+ ft) |
| Frequency range | US: 902~928 MHz. EU: 865~868 MHz TW: 922~928MHz. JP: 916~920MHz AU: 920~924MHz. NZ: 920~924MHz IN: 856.7~866.9MHz. Morocco: 867.7~867.9MHz |
| Battery | 3.6v, 3000mAh Li-ion battery |
| Size | Without RK25: 152.4 mm x 85.3 mm x 158.8 mm With RK25: 181.4 mm x 85.3 mm x 162.9 mm |
| Weight | Without RK25: 353.4 g With RK25: 632.7 g |
| Ruggedness | 1.2m drop (With RK25). IP54 |
| Software | Autofocus 8 megapixels with LED flash |
Video
Accessories
Charging and communication cradle
Charging and communication snap-on cable
Rubber boot
Vehicle cradle
Hand strap
(New) 4-slot battery charger
5-slot Terminal Charging Cradle
Battery charger with Terminal Charging Cradle

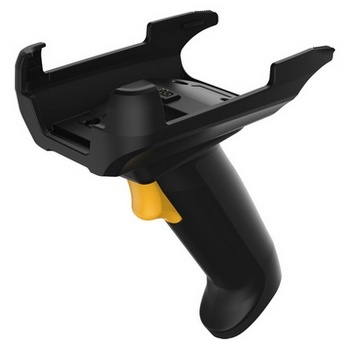

Pistol grip
RK25 UHF RFID reader
ReMoCloudTM is a mobile device management software developed by CipherLab to efficiently manage remote devices over the Internet. It serves as a pragmatic solution for corporate administrators to gain visibility on employee devices. As one of the Android EMM (Enterprise Mobility Management) solutions supporting Google Zero-touch enrollment, ReMoCloud streamlines the process for enterprise-owned Android devices and enables rapid large-scale roll out.
Seven Key Capabilities for Better Device Management
Simple and Large-scale Device Deployment
ReMoCloud provides a streamlined process for device deployments. Enterprises are able to save valuable time and cost in managing devices, whether for initial set up or contingent updates. Use ReMoCloud to create diverse configuration profiles and device groups to help administrators manage different operational processes. In addition, ReMoCloud allows for schedule deployments or updates, so the devices automatically update according to the enterprise's schedule during off hours.
Easy App Management
ReMoCloud makes it easy to manage apps, including upgrading to the latest version. Central administrators can control which apps are allowed on devices via block lists and installed applications, helping teams stay productive without unnecessary distraction. Additionally, enterprise-owned apps can be published easily.
Device Configuration Management
ReMoCloud maximizes control over all devices and enables easy, centralized and large-scale device configuration and adjustments. Configuration settings can be varied depending on device type and user profile. These device groups can be configured in bulk. There is no need to travel for repetitive tasks, reducing effort costs. Management holds access to the full system settings control and adjustments. Enterprise device users can log in and process immediately after receiving their device.
Enroll Enterprise Devices with Flexibility
ReMoCloud supports Android Zero-touch enrollment and offers seamless deployment of single or bulk device set up. When starting up new arrival devices, simply scan the generated barcode to complete the set-up process and deployment of the device. This eliminates the need for tedious step-by-step instructions, saving and eliminating human error.
Real-time Monitoring and Communication
ReMoCloud is a web-based platform for simpling real-time monitoring of device functional status. Its CipherLab Agility Intelligence enables instant review and provides operational analytics and insights. It can periodically send device information to administrators, such as battery health and temperatures, abnormal device events like weak Wi-Fi signal, reader errors, reboot counts, etc. To keep daily operations efficient and team engagement, Push Notification allows text messaging and serves as a quick communication channel for managers to stay in touch and deliver messages to their teams.
Mobile Device Security
ReMoCloud provides various security features. With Real-Time Location and Geo-Fencing, ReMoCloud can locate, track and collect information on the movement and activity of lost or missing mobile devices. Using Ring Device, you can find the missing device by sounding an alarm. Besides, Device Wipe and Device Lock functions allow for remote erasing or locking of lost or stolen devices, helping enterprises securely manage mobile devices and protect confidential information in case of data loss. *coming soon
